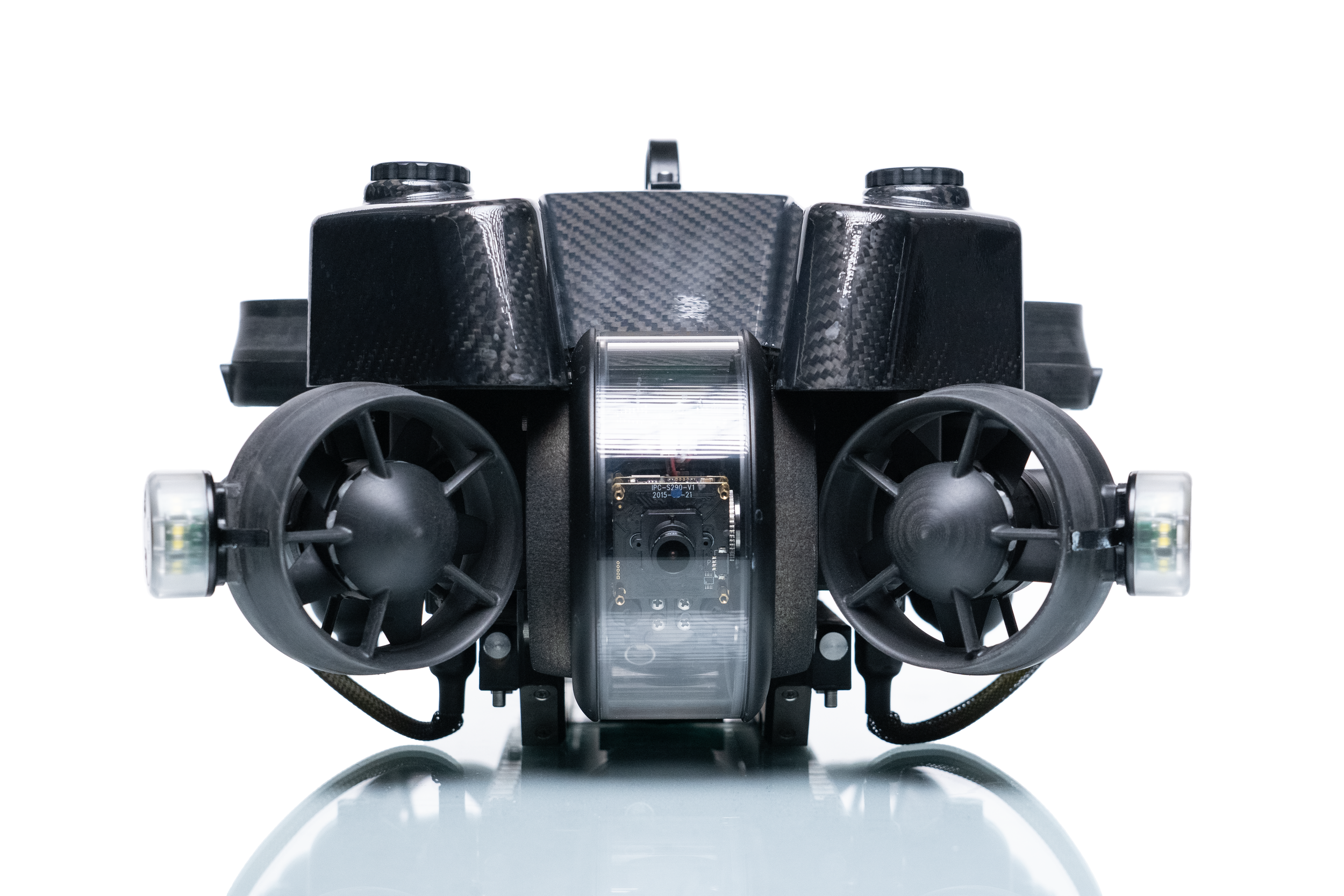

deep trekker photon
The Deep Trekker Photon is an advanced underwater ROV designed for precision and versatility. It features a 4K camera with 200-degree rotation, six thrusters for enhanced stability, and advanced data capture capabilities through Deep Trekker’s BRIDGE technology
Built with durable materials like anodized aluminum, carbon fiber, and stainless steel, the Photon is pressure-rated to 120 meters (400 feet). It includes LED floodlights, a swappable battery, a 100-meter tether, and a controller, all packed in a portable Pelican case
Ideal for inspections and surveys, the Photon offers reliable performance in challenging underwater environments. Elevate your underwater missions with the Deep Trekker Photon
Specifications
Width: 332 mm
Height: 228 mm
Length: 481 mm
Weight (in air): 11.6 kg
Body Material: Anodized Machined Aluminum, Carbon Fiber, & Buoyancy Foam
Window Material: Sapphire & Acrylic
Depth Rating: 120 m
Operating Temp: -10°C to 50°C
Drives/Thruster: Magnetically Coupled/Sealed
Case: Custom Pelican Air 1637 Handle and Wheels
Warranty: 1 Year – Parts and Labor (optional 2-3)
Tether Length: Options:Up to 300m
ROV Electrical System
System Voltage: 19.2 VDC
Thruster Control: 6 x Independent Control, Infinitely Variable, 100% Reversible
Lights and Camera
Video Enhanced 4K Camera
Picture: JPG 8mp
Lights: High Efficiency LED
Select Your Package
Base Package
-
BRIDGE
Camera Optimization with 4k Camera
200 Degree Rotating Camera
Depth Rating 120 m
Camera (Enhanced 4K)
Main Camera Lights (2,400 lumens)
Sensor Pod
DVL Compatible
Laser Scaler
150m Tether
Direct Power (Optional)
expert package
-
BRIDGE
Camera Optimization with 4k Camera
200 Degree Rotating Camera
Grabber
Depth Rating 120 m
Camera (Enhanced 4K)
Main Camera Lights (2,400 lumens)
Sensor Pod
DVL Compatible
Laser Scaler
150m Tether
Direct Power (Optional)
Swappable Batteries
SAR Package
See also these rovs
-
Deep Trekker Revolution
-
Deep Trekker PIVOT
-
Deep trekker DTG3
Endless Options of Add-Ons
Manipulator Bundle Pack (6 Attachments)
-
Retrieve objects, hold tools, or deploy equipment with ease. The grabber can handle various tasks, including retrieving large targets, lost gear, or samples. It can also hold tools like dye bottles for leak detection, rulers for measuring, carabiners for deploying lines, and more.
Direct Power Kit (300m)
-
Operate your PHOTON ROV for indefinite amounts of time with a direct power integration. Safely power your vehicle for missions that require more than 8 hours of ROV run time. This Direct Power Kit includes 300M tether
Blueprint Oculus Multibeam Sonars
-
M370S: Designed for long-range navigation and low-resolution imaging, this sonar is ideal for open-ocean surveys and shipwreck hunting with an operating range up to 200 meters.
M750D: A versatile dual-frequency sonar, combining high-resolution imaging for short-range tasks with an extended range for navigation. It is well-suited for both short and long-range operations, making it a best-selling model.
M1200D: Operating at a peak frequency of 2.1MHz and equipped with a 2.5mm range resolution, this sonar is ideal for detailed close-range inspections, including search and recovery, EOD (Explosive Ordnance Disposal), and MCM (Mine Countermeasures).
M3000D: The highest frequency sonar in its class, specifically designed for precise short-range imaging and inspections. It is optimal for detailed examinations of tunnels, tanks, walls, and ship hulls.
C550D: A compact and cost-effective option with a maximum range of 100 meters, the C550D offers lower resolution than higher-end models but delivers essential imaging capabilities for budget-conscious operations.
